Logarithm Period Antenna, 2700MHZProduct’s Description: Log-Period Antenna, 806-960/1710-2700MHz, 10± 1/ 11 ±1dBi Model No: - Electrical Specifications
Frequency Range 806-960MHz 1710-2700MHz VSWR ≤1.5 Gain 10±1dBi 11±1dBi Power capacity 50W Impedance 5Ω Polarization Type Vertical Horizontal Beam Width 75±12° 65±12° Vertical Beam Width 55° 50° Front to Back Ratio ≥16dB Intermodulation IM3 (2x33dBm) < - 140 Operating temperature -40 ÷ 60ºC Interface Type N-Female Lighting protection DC Ground - Mechanical Specifications

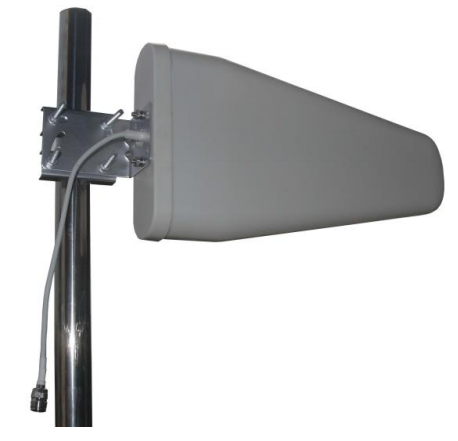

Input connector type N-Female Radiator Material Aluminum Radome material ABS Mounting type Wall/ Pole Connector position Bottom Weight of antenna 0.78kg Pigtail length 310MM Radome color White Weight of antenna 0.78kg Dimensions of antenna 410×210×65mm Radiator Material Aluminum Application Indoor/ Outdoor Grounding DC Ground - Appearance
