SZALO-DAU+DRU-GWLN1821-S-B7560-48
Application

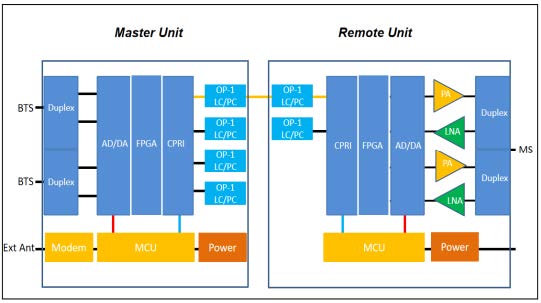

Block Diagram
Features▲ Digital filter support bandwidth adjustable function ▲ Optical transmissision up to 10km(max.) Low noise and high reliability ▲ Each master unit can support 4 remote units-Typical ▲ RJ45 Ethernet cable for local connection & remote connection via wireless Mode(optional) ▲ Support to monitor donor signal parameters for easy optimization and troubleshooting
SpecificationsDAU/DRU-GWLN1821-S-48 1800MHz(B3) 2100MHz(B1/N1) Frequency Range Uplink 1710 - 1785 MHz 1920 - 1980 MHz Downlink 1805 - 1880 MHz 2110 - 2170 MHz Bandwidth 75MHz 60MHz No. of Remote Unit 1~4 Typical Max. Gain UL ≧ 50 ±2dB; DL ≧ 55 ±2dB; Manual Gain Control 31 dB in step of 1 dB Automatic Gain Control ≧20 dB Gain Flatness ≦ 6 dB (peak-to-peak) Max. Input Power Without Damage UL: 0 dBm; DL: 10 dBm Output Power Uplink ≧-10 ±2dBm ≧-10 ±2dBm Downlink ≧ 48 ±2dBm ≧ 48 ±2dBm Spurious Emission 9kHz~1GHz ≦ -36dBm ≦ -36dBm 1GHz~12.75GHz ≦ -30dBm ≦ -30dBm ACPR ≤-40dBc/30KHz@±20MHz ≤-40dBc/30KHz@±20MHz ≤-45dBc/30KHz@±40MHz ≤-45dBc/30KHz@±40MHz Noise Figure Uplink ≦ 6 dB EVM GSM/UMTS ≦ 12.5%; LTE ≦ 8%; NR ≦ 3.5% VSWR ≦ 1.5 System Delay ≦9 μs Impedance 50Ω Optical Output Power ≧0 dBm Optical Wavelength 1330 nm/1270 nm (DDM) Fiber Single Mode RF Connector MU: N-Female *2; RU: N-Female *1 Fiber Connector MU: LC/PC*4; RU: FC/PC*2 Power Supply MU/RU:AC110/220V Power Consumption MU: ≦ 45 W; RU: ≦ 480 W Dimensions MU:427*235*44mm; RU:410*490*187mm; Weight MU: ≦ 7 Kg; RU: ≦ 30 Kg IP Rating MU: IP30; RU: IP65 Operating Temperature MU: -20~50 ℃; RU: -40~55 ℃ Control & Monitoring Local Via RJ45 Remote Via Wireless Modem (optional) * Technical spec subject to change without notice
