DCS & WCDMA Dual Band Fiber Optic Repeater

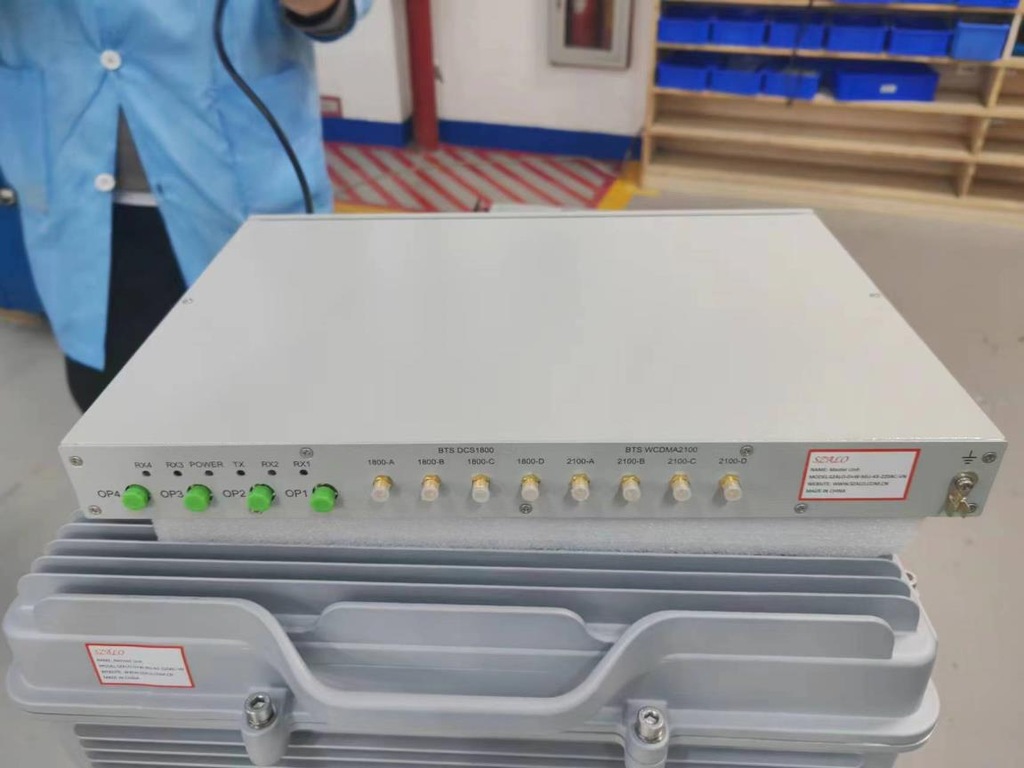

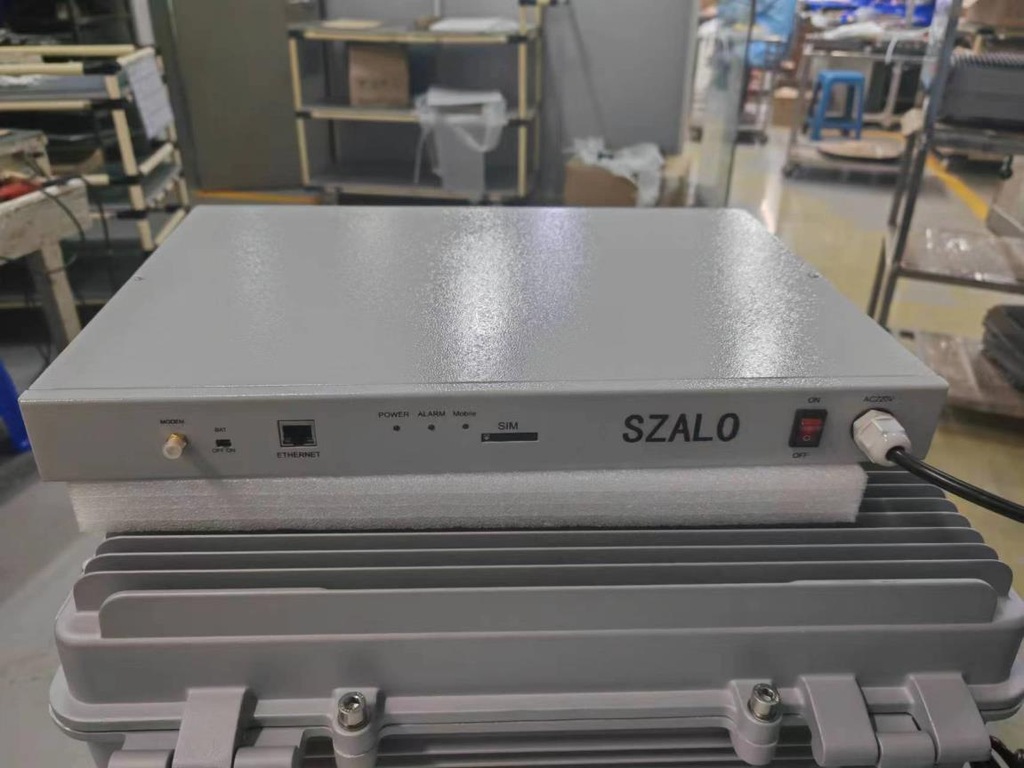

Model: D(L)&W Dual Band FO Repeater MU\-D(LB3) SZALO-W-AF-WB-MU

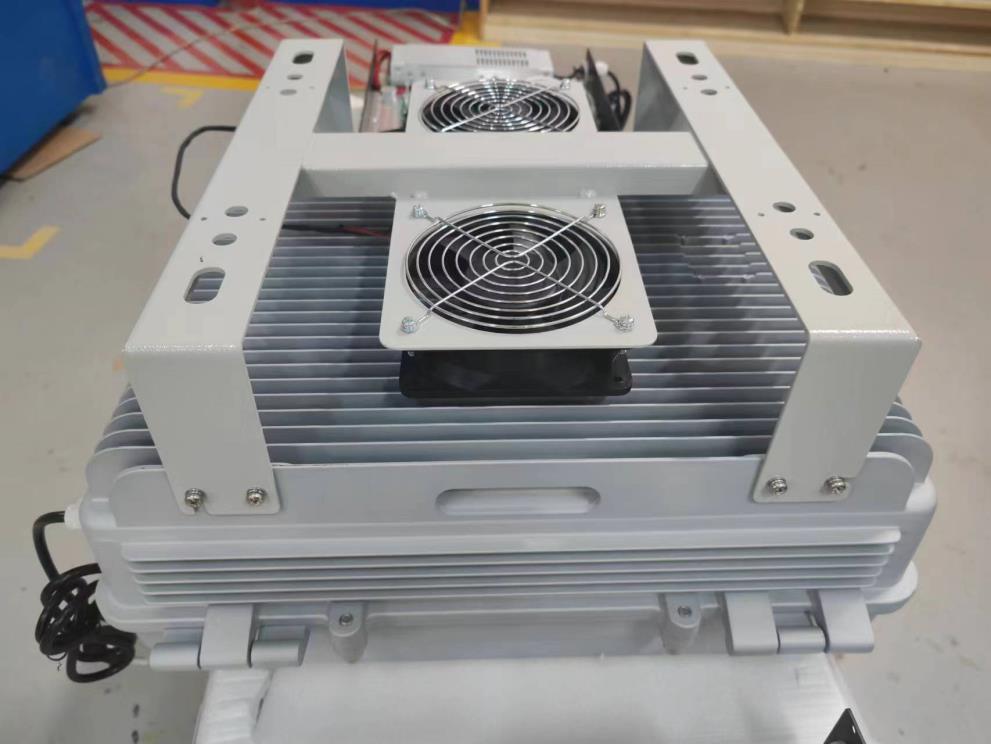

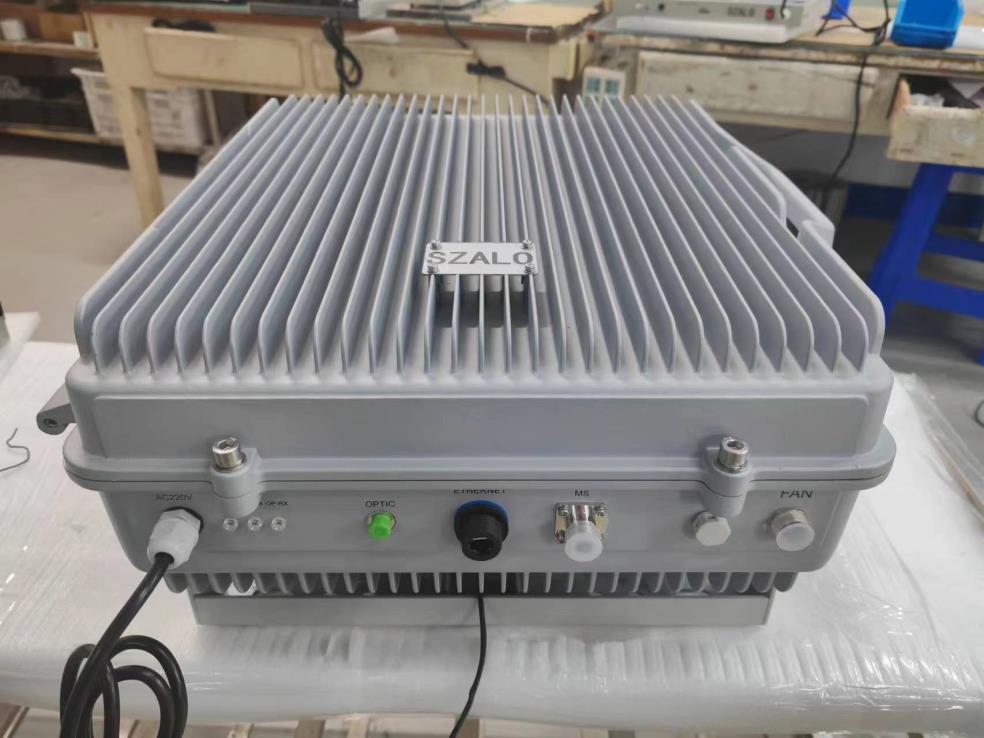

Model: D(L)&W Dual Band FO Repeater RU\-D(LB3) SZALO-W-AF-WB-RU-43-
The D+W Dual band fiber optical Repeater was developed by SZALO, and features long transmission distance, large power, Omni-directional coverage and multi-area coverage. It can be widely applied outdoor remote coverage instead of the BTS when BTS is few resources, or is used for indoor building and high way, high railway coverage. Because adopting digital filter technique, it features allowing a large number of remote devices, multi frame work, effective signal coverage, and strong anti-interference capability.
Feature
● Support multiple bands at the same time. e.g., DCS1800+WCDMA2100
● Full operation bandwidth system supports multi-operator or multi-network application
● One MU supports up to four RUs
● 20 watts power per band at the antenna connector as required
● 10dB Optical Budget – up to 20km optical distance
● IP65 weatherproof RU with built-in surge protector
● Built-in wireless modem for remote controlling and monitoring
● Comply with ETSI 300 609-4 (GSM) and 3GPP TS25 143 (WCDMA)

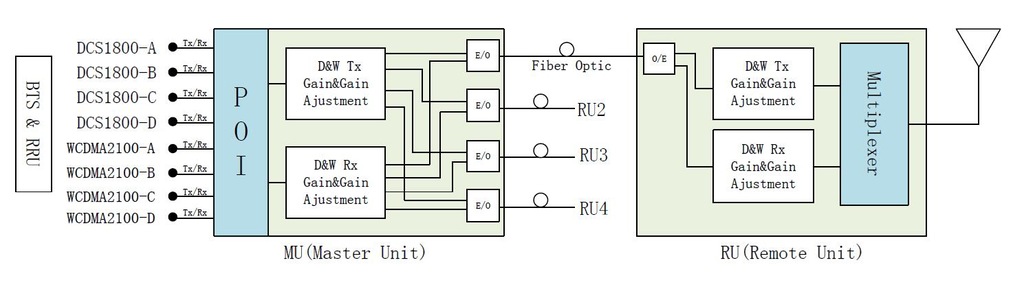

Functional Block Diagram
Electrical Specifications
| Parameters |
Specification |
| Frequency Range |
DCS1800 |
UL: 1710-1785 DL: 1805-1880 |
| WCDMA2100 |
UL: 1920-1980 DL: 2110-2170 |
| Max Gain |
55±2dB |
| Adjustable Gain Range |
30dB |
| Adjustable Step |
1dB |
| Output Power |
DCS1800 |
UL: -10±2dBm; DL: 43±2dBm (20W) |
| WCDMA2100 |
UL: -10±2dBm; DL: 43±2dBm (20W) |
Max No Damage Input
Power |
UL: 0dBm |
| DL: 10dBm |
| Pass Band Ripple |
≤+-4dB |
| Uplink Noise Figure |
≤8dB (test condition:1MU+1RU)MAX. Gain |
| ALC |
≥20dB for Downlink |
| VSWR |
≤1.8 |
| Group Delay |
≤5ųs ( Not consider the fiber delay) |
Spurious Emission |
9kHz~150kHz |
≤ -36/1KHz |
| 150kHz~30MHz |
≤ -36/10KHz |
| 30MHz~1GHz |
≤ -36@100KHz |
| 1GHz~12.75GHz |
≤ -5@1MHz |
| IMD |
DCS1800 |
≤-45dBc(2CH) |
ACLR |
WCDMA2100 |
△f=5MHz: 45dBc
△f=10MHz: 50dBc |
| Transmission Distance |
Max. 20KM |
| Type of Fiber Optic Cable |
Single mode |
| Fiber Optic Interface |
MU:FC / APC; RU: FC / APC; |
| Optic Wavelength |
1310/1550nm |
| Number of Remote Unit |
4 remote units per 1 Master unit |
Monitoring Control
| Parameters |
Specification |
| Alarm |
Summary, High VSWR, Power supply failure, Power
amplifier over-power, Door open, Temperature, Link |
| Alarm Report Control |
Enable / Disable |
| Threshold Level Setting |
Temperature, VSWR, PA Power |
| Remote Control |
Wireless Modem，rs232， |
Mechanical Specifications
| Parameters |
Specification |
| Dimension (H x W x D) |
Master Unit |
430*300*44mm |
| |
Remote Unit |
489*409*186.5mm |
| Material |
Aluminum |
| Weight |
Master Unit |
About 9kg |
| Remote Unit |
About 25kg |
Interface |
Antenna |
N female(RU) |
| RF coupling |
SMA-female*8(MU) |
| Local control |
RJ45(Ethernet) |
| Mounting |
Wall Mounting |
| Weatherproof |
Remote Unit |
IP55 |
Power Specifications
| Parameters |
Specification |
| Power Supply |
Master Unit |
-48VDC |
| Remote Unit |
110~220VAC/50Hz |
| Power Consumption |
Master Unit |
≤50W |
| Remote Unit |
≤300W |
| AC Surge Protection |
8/20us, 10kA Pulse |
| Grounding |
External threaded stud |
Environment Specifications
| Parameters |
Specification |
| Operation Temperature |
-30˚C ~ +55˚C |
| Storage Temperature |
-40˚C ~ +85˚C |
| Humidity |
5%～95% |
| EMC |
ETS 300 342-3 |
| MTBF |
100,000 hours |
DCS & WCDMA Dual Band Fiber Optic RepeaterDCS & WCDMA Dual Band Fiber Optic Repeater
