| Item |
Specification |
| Uplink |
Downlink |
| Frequency Range (MHz) |
LTE FDD1800 Band |
1710 ~ 1785 |
1805 ~ 1880 |
| LTE FDD2100 Band |
1920 ~ 1980 |
2110 ~ 2170 |
| Bandwidth(MHz) |
LTE FDD1800 Band |
0.2-20 |
| LTE FDD2100 Band |
0.2-20 |
| Sub band number |
LTE FDD1800 Band |
3 |
| LTE FDD2100 Band |
3 |
| Max. Total Output Power(dBm)Center Frequency |
27±2 |
43±2 |
| Max.Gain (dB) Center Frequency at 25℃ |
90±3 |
95±3 |
| ATT Adjustable Range (dB)/(Step) 1dB |
0~30 @ 1 dB step |
| ATT Adjustable Error (dB) |
≤ |±1.5| |
≤ |±1.5| |
| ALC (dB) |
0~20 |
| Noise Figure (dB) (Max. Gain) |
≤ 10.0 |
| Input VSWR(Power up, Min Gain, Pin=-30dBm) |
≤ 1.8 |
| Ripple In Band (P-P) (dB)At +25℃ |
LTE FDD1800 Band |
1712-1783M/1807-1878M：≤±5.0@EBW；
1710-1785M/1805-1880M：≤±6.0@EBW； |
| LTE FDD2100 Band |
1922-1978M/2112-2168M：≤±5.0@EBW；
1920-1980M/2110-2170M：≤±6.0@EBW； |
| Out of Band Rejection (dBc)At +25℃ |
3MHz£ f_offset<5MHz |
≥56 |
| 5MHz£ f_offset |
≥60 |
Spurious Emission (dBm)
@ Out Of Band 10MHz Offset |
9kHz~150kHz |
≤ -36dBm/1KHz |
| 150kHz~30MHz |
≤ -36dBm/10KHz |
| 30MHz~1GHz |
≤ -15dBm/100KHz |
| 1GHz~12.75GHz |
≤ -10dBm/1MHz |
| EVM (%) |
≤ 8.0 |
| Time Delay (us) |
≤ 7.0 |
| RF Connector |
N(f) |
| Input / output Impedance (Ω) |
50 |
| Power Supply |
AC176-264V/50Hz |
| Temperature Range (℃) |
-25 ~ +55 |
| Humidity Range (%) |
5~95 |
| Weight (Kg) |
≤40 |

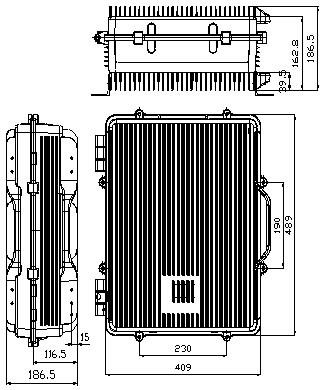

| Dimension (mm) |
489*409*186.5 |
| Monitor & Alarm |
Local Monitor |
RJ45 |
| Remote Monitor |
SMS(GSM Modem) |

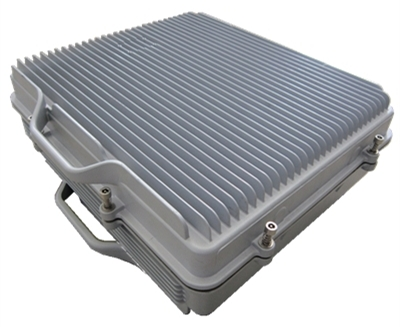

SZALO-L1800-75M+L2100-60M-43dBm Dual Band Digital Repeater
