| Item |
Specification |
| Uplink |
Downlink |
| Frequency Range (MHz) |
GSM/LTE FDD1800 Band |
1710 ~ 1785 |
1805 ~ 1880 |
| UMTS/LTE FDD2100 Band |
1920 ~ 1980 |
2110 ~ 2170 |
| Bandwidth(MHz) |
GSM/LTE FDD1800 Band |
75 |
75 |
| UMTS/LTE FDD2100 Band |
60 |
60 |
| Max. Total Output Power(dBm)Center Frequency |
-10±2 |
43±2 |
| Max.Gain (dB) Center Frequency at 25℃ |
45±3 |
45±3 |
| ATT Adjustable Range (dB)/(Step) 1dB |
0~20 @ 1 dB step |
| ATT Adjustable Error (dB) |
≤ |±1.5| |
≤ |±1.5| |
| ALC (dB) |
0~20 |
| Noise Figure (dB) (Max. Gain) |
≤ 8.0 |
--- |
| Input VSWR(Power up, Min Gain, Pin=-30dBm) |
≤ 1.8 |
| Ripple In Band (P-P) (dB)At +25℃ |
GSM/LTE FDD1800 Band |
≤7.0 |
| UMTS/LTE FDD2100 Band |
≤7.0 |
Spurious Emission (dBm)
@ Out Of Band 10MHz Offset |
9kHz~150kHz |
≤ -36dBm/1KHz |
| 150kHz~30MHz |
≤ -36dBm/10KHz |
| 30MHz~1GHz |
≤ -36dBm/100KHz |
| 1GHz~12.75GHz |
≤ -30dBm/1MHz |
| IMD3 (dBc) (Max Gain) |
≤-36(CH1/CH2:600KHz) |
| Time Delay (us) |
≤ 5.0 |
| RF Connector |
N(f) |
| Input / output Impedance (Ω) |
50 |
| Power Supply |
AC176-264V/50Hz； |
| Temperature Range (℃) |
-5 ~ +60 |
| Humidity Range (%) |
5~80 |
| Weight (Kg) |
≤30 |
| Dimension (mm) |
489*409*186.5 |
| Monitor & Alarm |
Local Monitor |
RS232 |
| |
|

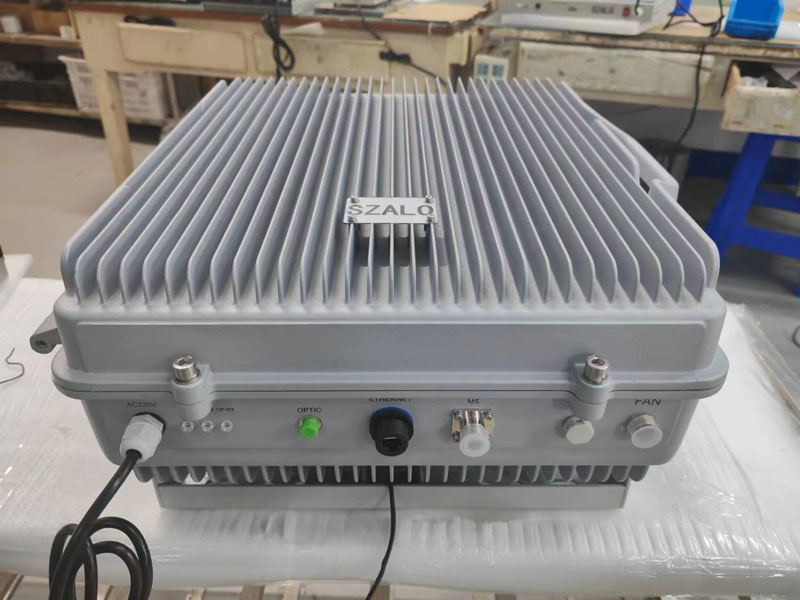

Dual Band Line Amplifier 20W
