SPLITTER-C
-
Wideband Directional Coupler 698 - 4000 MhzMain Features
Low PIM
Low VSWR and Loss High Power Performance
Electrical Specifications
Model Description Coupling Value
(dB)Directivity
(≥ dB)Distribution Loss
(dB)SZALO-OHQ-5 Wide Band Coupler 5dB 5 23 ≤2.15 SZALO-OHQ-6 Wide Band Coupler 6dB 6 24 ≤1.76 SZALO-OHQ-7 Wide Band Coupler 7dB 7 25 ≤1.5 SZALO-OHQ-8 Wide Band Coupler 8dB 8 26 ≤1.15 SZALO-OHQ-10 Wide Band Coupler 10dB 10 28 ≤0.96 SZALO-OHQ-12 Wide Band Coupler 12dB 12 31 ≤0.6 SZALO-OHQ-13 Wide Band Coupler 13dB 13 31 ≤0.6 SZALO-OHQ-15 Wide Band Coupler 15dB 15 33 ≤0.44 SZALO-OHQ-20 Wide Band Coupler 20dB 20 38 ≤0.34 SZALO-OHQ-25 Wide Band Coupler 25dB 25 43 ≤0.34 SZALO-OHQ-30 Wide Band Coupler 30dB 30 48 ≤0.30 SZALO-OHQ-35 Wide Band Coupler 35dB 35 53 ≤0.25 SZALO-OHQ-40 Wide Band Coupler 40dB 40 53 ≤0.25 Operating Frequency (Mhz) 698 – 4000 VSWR ≤1.25 Power handling (W) 300 Intermodulation (3rd order) @2x43dBm (dBc) ≤-155dBc@2x43dBm Impedance 50Ω
Environmental Specifications
Operating temperature range -30°C to +70°C Relative humidity 5%- 95%
Barometric pressure 55KPa -106KPa
Ingress Protection Ratings IP65
Mechanical Specifications
Dimension 128 x47 x 22 (mm)
Weight 470g
Connectors type N female

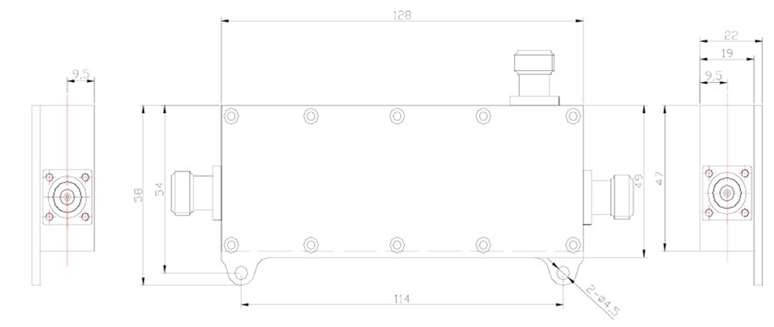

Outline Drawing
