SPLITTER-C
-
Wideband Power Splitter 698 - 4000 MhzWideband Power Splitter 698 - 4000 Mhz
Model: SZALO-GFQ-2 / SZALO-GFQ-3 / SZALO-GFQ-4
Main Features
Low PIM
Low VSWR and Loss
High Power PerformanceSZALO-GFQ-2 SZALO-GFQ-3 SZALO-GFQ-4
Electrical Specifications
Model SZALO-GFQ-2 SZALO-GFQ-3 SZALO-GFQ-4 Item Number 2-Way 3-Way 4-Way Distribution Loss(dB) ≤3.2 ≤4.8 ≤6.5 Insertion Loss (dB) ≤0.3 ≤0.5 ≤0.6 Return Loss (dB) ≤19 VSWR ≤1.25 Power handling 300W Intermodulation (3rd order) ≤-155dBc@2x43dBm Impedance 50Ω Environmental Specifications
Operating temperature range -30°C to +70°C Storage temperature range -40°C to +85°C Relative humidity 5%- 95%
Barometric pressure 55KPa -106KPa
Ingress Protection Ratings IP65
Mechanical Specifications
Dimension (mm) 216.8 x 60.6 x 25 / 263.6 x 60.6 x 25 / 263.6 x60.6 x 42.8
Weight (g) 340 / 410 / 450
Connectors type N Female

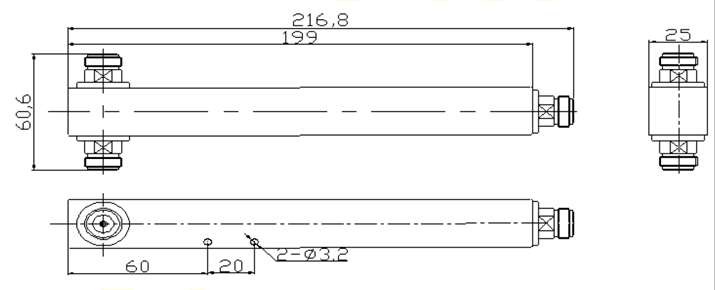

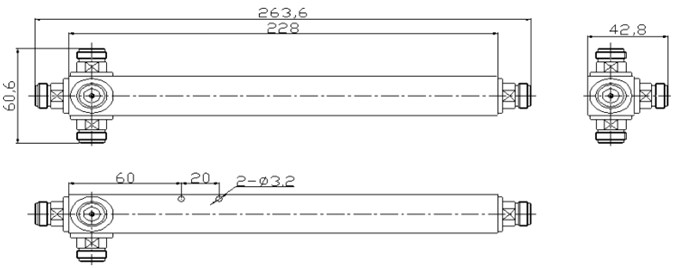

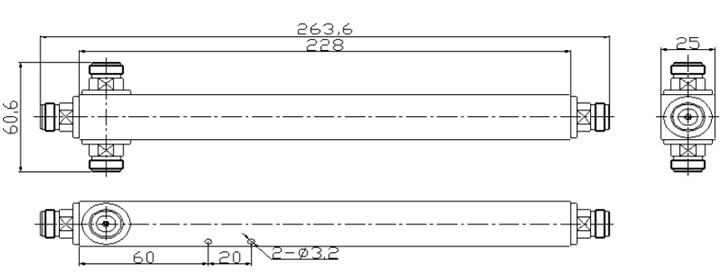

Outline Drawing
2-Way 3-Way 4-Way
